1. 安装mysqld_exporter
- 创建
mysqld_exporter目录 - 在
mysqld_exporter目录下创建docker-compose.yml文件
version: 3.3
services:
mysql_exporter_hq_m:
image: harbocto.xxx.com.cn/bdteam/mysqld-exporter:latest
container_name: mysql_exporter_hq_m
ports:
- 9104:9104
restart: always
environment:
DATA_SOURCE_NAME: "数据库用户:密码@(IP:端口)/"
mysql_exporter_hq_s:
image: harbocto.xxx.com.cn/bdteam/mysqld-exporter:latest
container_name: mysql_exporter_hq_s
ports:
- 9105:9104
restart: always
environment:
DATA_SOURCE_NAME: "数据库用户:密码@(IP:端口)/"
- 启动
docker-compose up -d
- 查看结果
[root@m6e-pro mysql_exporter]# docker-compose ps
Name Command State Ports
---------------------------------------------------------------------------
mysql_exporter_hq_m /bin/mysql_exporter_hq_m Up 0.0.0.0:9104->9104/tcp
mysql_exporter_hq_m /bin/mysql_exporter_hq_m Up 0.0.0.0:9105->9104/tcp
- web页面查看结果
访问 http://IP:9104/metric 可以看倒获取的mysql信息。
2. 配置prometheus
- 修改
prometheus.yml文件，添加如下内容：
- job_name: HQAllInOnePC
scrape_interval: 15s
static_configs:
- targets: [ 10.10.xxx.64:9104 , 10.10.xxx.64:9105 ]
params:
collect[]:
- global_status
- perf_schema.tableiowaits
- perf_schema.indexiowaits
- perf_schema.tablelocks
- slave_status
- slave_hosts
- 重启服务
- 访问prometheuse的targets查看结果如下：
3. 配置n9e 图表
3.1 手动配置（方法一）
参考《04-监控redis集群-prometheuse+n9e》中“3.2 配置图表”

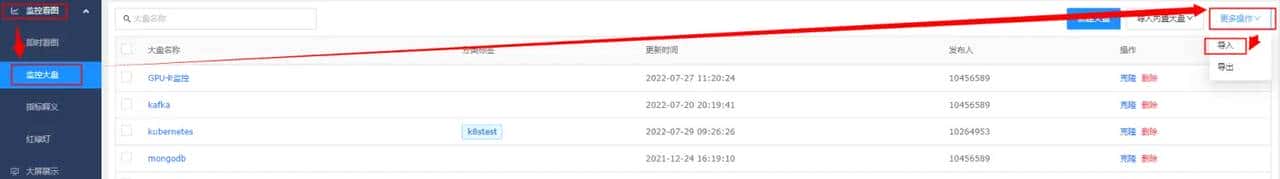

3.2 导入模板（方法二）
模板内容如下：
[
{
"id": 0,
"name": "mysql监控",
"tags": "",
"configs": "{"tags":[{"tagName":"job","key":"job","value":"HQAllInOnePC","prefix":false,"metric":"mysql_global_status_connections"}]}",
"chart_groups": [
{
"id": 0,
"dashboard_id": 0,
"name": "Default chart group",
"weight": 0,
"charts": [
{
"id": 56,
"group_id": 12,
"configs": "{"name":"mysql-dom-ha","mode":"prometheus","link":"http://127.0.0.1:9090","prome_ql":["mysql_global_status_aborted_clients"],"layout":{"h":2,"w":8,"x":0,"y":0,"i":"0"}}",
"weight": 0
},
{
"id": 57,
"group_id": 12,
"configs": "{"name":"binlog日志缓存大小","mode":"prometheus","link":"http://127.0.0.1:9090","prome_ql":["mysql_global_status_binlog_cache_use"],"layout":{"h":2,"w":8,"x":8,"y":0,"i":"1"}}",
"weight": 0
},
{
"id": 62,
"group_id": 12,
"configs": "{"name":"5分钟平均查询数","mode":"prometheus","link":"http://127.0.0.1:9090","prome_ql":["irate(mysql_global_status_queries[5m])"],"layout":{"h":2,"w":8,"x":16,"y":0,"i":"2"}}",
"weight": 0
},
{
"id": 63,
"group_id": 12,
"configs": "{"name":"连接数","mode":"prometheus","link":"http://127.0.0.1:9090","prome_ql":["mysql_global_status_threads_connected"],"layout":{"h":2,"w":8,"x":0,"y":2,"i":"3"}}",
"weight": 0
},
{
"id": 64,
"group_id": 12,
"configs": "{"name":"允许的最大连接数","mode":"prometheus","link":"http://127.0.0.1:9090","prome_ql":["mysql_global_status_max_used_connections"],"layout":{"h":2,"w":8,"x":8,"y":2,"i":"4"}}",
"weight": 0
},
{
"id": 65,
"group_id": 12,
"configs": "{"name":"运行状态的连接数","mode":"prometheus","link":"http://127.0.0.1:9090","prome_ql":["mysql_global_status_threads_running"],"layout":{"h":2,"w":8,"x":16,"y":2,"i":"5"}}",
"weight": 0
},
{
"id": 66,
"group_id": 12,
"configs": "{"name":"5分钟内平均慢查询数","mode":"prometheus","link":"http://127.0.0.1:9090","prome_ql":["irate(mysql_global_status_slow_queries[5m])"],"layout":{"h":2,"w":8,"x":0,"y":4,"i":"6"}}",
"weight": 0
},
{
"id": 67,
"group_id": 12,
"configs": "{"name":"5分钟内平均等待lock数","mode":"prometheus","link":"http://127.0.0.1:9090","prome_ql":["irate(mysql_global_status_table_locks_waited[5m])"],"layout":{"h":2,"w":8,"x":8,"y":4,"i":"7"}}",
"weight": 0
},
{
"id": 68,
"group_id": 12,
"configs": "{"name":"最近5分钟平均接受字节数","mode":"prometheus","link":"http://127.0.0.1:9090","prome_ql":["irate(mysql_global_status_table_locks_waited[5m])"],"layout":{"h":2,"w":8,"x":16,"y":4,"i":"8"}}",
"weight": 0
},
{
"id": 69,
"group_id": 12,
"configs": "{"name":"最近5分钟平均发送字节数","mode":"prometheus","link":"http://127.0.0.1:9090","prome_ql":["irate(mysql_global_status_bytes_sent[5m])"],"layout":{"h":2,"w":8,"x":0,"y":6,"i":"9"}}",
"weight": 0
},
{
"id": 70,
"group_id": 12,
"configs": "{"name":"最近5分钟平均打开的表数量","mode":"prometheus","link":"http://127.0.0.1:9090","prome_ql":["irate(mysql_global_status_opened_tables[5m])"],"layout":{"h":2,"w":8,"x":8,"y":6,"i":"10"}}",
"weight": 0
},
{
"id": 71,
"group_id": 12,
"configs": "{"name":"最近5分钟平均缓存命中数","mode":"prometheus","link":"http://127.0.0.1:9090","prome_ql":["irate(mysql_global_status_table_open_cache_hits[5m])"],"layout":{"h":2,"w":8,"x":16,"y":6,"i":"11"}}",
"weight": 0
}
]
}
]
}
]
4. FAQ
4.1 mysql有白名单或防火墙，容器内不能访问
【思路】
用host模式启动——> （引出问题：启动多个服务端口会冲突）——–> 修改mysqld_exposrt启动端口
【解决】
修改docker-compose.yml文件如下：
version: 3.3
services:
mysql_exporter_hq_m:
image: harbocto.boe.com.cn/bdteam/mysqld-exporter:latest
container_name: mysql_exporter_hq_m
network_mode: "host"
#ports:
# - 9104:9104
command: ["--web.listen-address=:9104"]
restart: always
environment:
DATA_SOURCE_NAME: "数据库用户:密码@(IP:端口)/"
mysql_exporter_hq_s:
image: harbocto.boe.com.cn/bdteam/mysqld-exporter:latest
container_name: mysql_exporter_hq_s
network_mode: "host"
#ports:
# - 9105:9104
command: ["--web.listen-address=:9105"]
restart: always
environment:
DATA_SOURCE_NAME: "数据库用户:密码@(IP:端口)/"
4.2 修改mysqld_exporter启动端口
命令
/bin/mysqld_exporter --web.listen-address=:9105
容器实现
完整示例见上文
command: ["--web.listen-address=:9105"]
