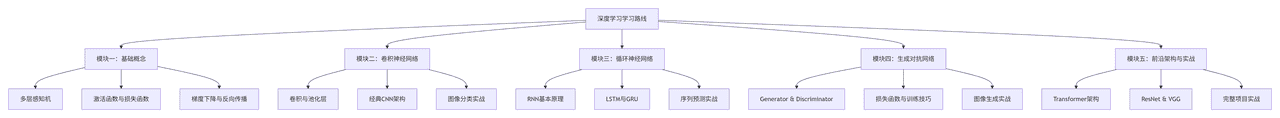

以下是为你规划的学习路线图，它清晰地展示了从入门到精通需要掌握的五大核心模块：
接下来，我将详细讲解每个模块的核心知识点，并提供可直接运行的Python代码。
模块一：深度学习基础 – 多层感知机
深度学习的基础是多层感知机（MLP），它由全连接层构成，是最基本的神经网络结构。
核心知识点：
前向传播：数据从输入层到输出层的计算过程
激活函数：引入非线性，使网络能学习复杂模式，如ReLU、Sigmoid、Tanh
损失函数：衡量模型预测与真实值的差距
反向传播：根据损失调整网络参数的算法
下面是使用TensorFlow/Keras构建MLP的完整代码：
import tensorflow as tf
from tensorflow.keras import layers, models
import numpy as np
# 构建MLP模型
def create_mlp_model(input_dim=784, num_classes=10):
model = models.Sequential([
layers.Dense(128, activation='relu', input_shape=(input_dim,)),
layers.Dropout(0.2), # 丢弃层防止过拟合
layers.Dense(64, activation='relu'),
layers.Dropout(0.2),
layers.Dense(num_classes, activation='softmax') # 多分类使用softmax
])
return model
# 编译和训练模型
def train_mlp():
# 加载MNIST数据集
(x_train, y_train), (x_test, y_test) = tf.keras.datasets.mnist.load_data()
# 数据预处理
x_train = x_train.reshape((60000, 28*28)).astype('float32') / 255
x_test = x_test.reshape((10000, 28*28)).astype('float32') / 255
# 创建模型
model = create_mlp_model()
# 编译模型
model.compile(optimizer='adam',
loss='sparse_categorical_crossentropy',
metrics=['accuracy'])
# 训练模型
history = model.fit(x_train, y_train,
epochs=5,
batch_size=32,
validation_split=0.2)
# 评估模型
test_loss, test_acc = model.evaluate(x_test, y_test)
print(f'
测试准确率: {test_acc:.4f}')
return model, history
# 运行代码
if __name__ == "__main__":
model, history = train_mlp()代码解析：
使用Keras的Sequential API构建顺序模型
Dense
Dropout
使用Adam优化器和交叉熵损失函数
数据归一化到[0,1]区间，提高训练稳定性
模块二：卷积神经网络（CNN）
CNN专门处理网格状数据（如图像），通过卷积核提取局部特征，具有参数共享和平移不变性的优点。
核心知识点：
卷积层：使用滤波器提取特征，通过局部连接和权值共享减少参数量
池化层：降维并保留主要特征，增加平移不变性
经典架构：LeNet-5、VGG、ResNet等
下面是CNN的完整实现代码：
import tensorflow as tf
from tensorflow.keras import layers, models
import matplotlib.pyplot as plt
# 构建CNN模型（LeNet-5改进版）
def create_cnn_model(input_shape=(28, 28, 1), num_classes=10):
model = models.Sequential([
# 第一个卷积块
layers.Conv2D(32, (3, 3), activation='relu', input_shape=input_shape),
layers.MaxPooling2D((2, 2)),
# 第二个卷积块
layers.Conv2D(64, (3, 3), activation='relu'),
layers.MaxPooling2D((2, 2)),
# 分类头
layers.Flatten(),
layers.Dense(128, activation='relu'),
layers.Dropout(0.5),
layers.Dense(num_classes, activation='softmax')
])
return model
def train_cnn():
# 加载数据
(x_train, y_train), (x_test, y_test) = tf.keras.datasets.mnist.load_data()
# 预处理 - 添加通道维度并归一化
x_train = x_train.reshape((60000, 28, 28, 1)).astype('float32') / 255
x_test = x_test.reshape((10000, 28, 28, 1)).astype('float32') / 255
# 创建模型
model = create_cnn_model()
# 编译
model.compile(optimizer='adam',
loss='sparse_categorical_crossentropy',
metrics=['accuracy'])
# 训练
history = model.fit(x_train, y_train,
epochs=5,
batch_size=32,
validation_split=0.2)
# 评估
test_loss, test_acc = model.evaluate(x_test, y_test)
print(f'
CNN测试准确率: {test_acc:.4f}')
# 可视化预测
visualize_predictions(model, x_test[:5])
return model, history
def visualize_predictions(model, test_images):
predictions = model.predict(test_images)
fig, axes = plt.subplots(1, 5, figsize=(15, 3))
for i, ax in enumerate(axes):
ax.imshow(test_images[i].reshape(28, 28), cmap='gray')
ax.set_title(f'预测: {np.argmax(predictions[i])}')
ax.axis('off')
plt.show()
if __name__ == "__main__":
model, history = train_cnn()代码解析：
Conv2D
MaxPooling2D
卷积-池化层的堆叠构建层次化特征表示
Flatten
模块三：循环神经网络（RNN）
RNN专门处理序列数据，具有时间维度上的参数共享特性，能够捕捉时间依赖关系。
核心知识点：
时间展开：RNN按时间步展开，共享相同权重
梯度问题：存在梯度消失/爆炸，LSTM和GRU通过门控机制解决
双向RNN：同时考虑过去和未来信息
下面是RNN的完整实现代码：
import tensorflow as tf
from tensorflow.keras import layers, models
import numpy as np
# 构建RNN模型
def create_rnn_model(vocab_size=10000, embedding_dim=128, rnn_units=64):
model = models.Sequential([
# 嵌入层将整数索引转换为密集向量
layers.Embedding(vocab_size, embedding_dim),
# 简单RNN层
layers.SimpleRNN(rnn_units, return_sequences=False),
# 分类层
layers.Dense(32, activation='relu'),
layers.Dropout(0.2),
layers.Dense(1, activation='sigmoid') # 二分类
])
return model
def train_rnn():
# 加载IMDB电影评论数据集
(x_train, y_train), (x_test, y_test) = tf.keras.datasets.imdb.load_data(num_words=10000)
# 文本数据预处理 - 填充序列到相同长度
x_train = tf.keras.preprocessing.sequence.pad_sequences(x_train, maxlen=200)
x_test = tf.keras.preprocessing.sequence.pad_sequences(x_test, maxlen=200)
# 创建模型
model = create_rnn_model()
# 编译
model.compile(optimizer='adam',
loss='binary_crossentropy',
metrics=['accuracy'])
# 训练
history = model.fit(x_train, y_train,
epochs=3,
batch_size=32,
validation_split=0.2)
# 评估
test_loss, test_acc = model.evaluate(x_test, y_test)
print(f'
RNN测试准确率: {test_acc:.4f}')
return model, history
# LSTM实现（更强大的RNN变体）
def create_lstm_model(vocab_size=10000, embedding_dim=128, lstm_units=64):
model = models.Sequential([
layers.Embedding(vocab_size, embedding_dim),
# LSTM层，解决梯度消失问题
layers.LSTM(lstm_units),
layers.Dense(32, activation='relu'),
layers.Dropout(0.2),
layers.Dense(1, activation='sigmoid')
])
return model
if __name__ == "__main__":
# 训练简单RNN
print("训练简单RNN...")
rnn_model, rnn_history = train_rnn()
# 训练LSTM
print("
训练LSTM...")
lstm_model = create_lstm_model()
lstm_model.compile(optimizer='adam', loss='binary_crossentropy', metrics=['accuracy'])
lstm_history = lstm_model.fit(x_train, y_train, epochs=3, batch_size=32, validation_split=0.2)
lstm_test_loss, lstm_test_acc = lstm_model.evaluate(x_test, y_test)
print(f'LSTM测试准确率: {lstm_test_acc:.4f}')代码解析：
Embedding
SimpleRNN
LSTM
填充序列确保输入长度一致
模块四：生成对抗网络（GAN）
GAN由生成器(Generator)和判别器(Discriminator)组成，通过对抗训练学习数据分布。
核心知识点：
生成器：从随机噪声生成假数据，目标是”欺骗”判别器
判别器：区分真实数据和生成数据
最小最大博弈：两者相互对抗、共同提升
下面是GAN的完整实现代码：
import tensorflow as tf
from tensorflow.keras import layers, models
import numpy as np
import matplotlib.pyplot as plt
# 构建生成器
def build_generator(noise_dim=100):
model = models.Sequential([
layers.Dense(7*7*256, use_bias=False, input_shape=(noise_dim,)),
layers.BatchNormalization(),
layers.LeakyReLU(),
layers.Reshape((7, 7, 256)),
# 上采样块1
layers.Conv2DTranspose(128, (5, 5), strides=(1, 1), padding='same', use_bias=False),
layers.BatchNormalization(),
layers.LeakyReLU(),
# 上采样块2
layers.Conv2DTranspose(64, (5, 5), strides=(2, 2), padding='same', use_bias=False),
layers.BatchNormalization(),
layers.LeakyReLU(),
# 输出层
layers.Conv2DTranspose(1, (5, 5), strides=(2, 2), padding='same',
use_bias=False, activation='tanh')
])
return model
# 构建判别器
def build_discriminator(input_shape=(28, 28, 1)):
model = models.Sequential([
# 下采样块1
layers.Conv2D(64, (5, 5), strides=(2, 2), padding='same',
input_shape=input_shape),
layers.LeakyReLU(),
layers.Dropout(0.3),
# 下采样块2
layers.Conv2D(128, (5, 5), strides=(2, 2), padding='same'),
layers.LeakyReLU(),
layers.Dropout(0.3),
# 分类层
layers.Flatten(),
layers.Dense(1, activation='sigmoid')
])
return model
# 构建完整GAN
class GAN(tf.keras.Model):
def __init__(self, generator, discriminator):
super(GAN, self).__init__()
self.generator = generator
self.discriminator = discriminator
def compile(self, g_optimizer, d_optimizer, loss_fn):
super(GAN, self).compile()
self.g_optimizer = g_optimizer
self.d_optimizer = d_optimizer
self.loss_fn = loss_fn
def train_step(self, real_images):
batch_size = tf.shape(real_images)[0]
noise_dim = 100
# 生成随机噪声
noise = tf.random.normal([batch_size, noise_dim])
# 训练判别器
with tf.GradientTape() as d_tape:
# 判别器对真实图像的预测
d_real_pred = self.discriminator(real_images, training=True)
# 生成假图像
fake_images = self.generator(noise, training=True)
# 判别器对假图像的预测
d_fake_pred = self.discriminator(fake_images, training=True)
# 判别器损失
d_real_loss = self.loss_fn(tf.ones_like(d_real_pred), d_real_pred)
d_fake_loss = self.loss_fn(tf.zeros_like(d_fake_pred), d_fake_pred)
d_loss = (d_real_loss + d_fake_loss) / 2
# 更新判别器
d_gradients = d_tape.gradient(d_loss, self.discriminator.trainable_variables)
self.d_optimizer.apply_gradients(
zip(d_gradients, self.discriminator.trainable_variables))
# 训练生成器
with tf.GradientTape() as g_tape:
fake_images = self.generator(noise, training=True)
d_fake_pred = self.discriminator(fake_images, training=True)
# 生成器希望判别器将假图像判断为真
g_loss = self.loss_fn(tf.ones_like(d_fake_pred), d_fake_pred)
# 更新生成器
g_gradients = g_tape.gradient(g_loss, self.generator.trainable_variables)
self.g_optimizer.apply_gradients(
zip(g_gradients, self.generator.trainable_variables))
return {"d_loss": d_loss, "g_loss": g_loss}
def train_gan():
# 加载数据
(x_train, _), (_, _) = tf.keras.datasets.mnist.load_data()
# 预处理
x_train = x_train.reshape(-1, 28, 28, 1).astype('float32')
x_train = (x_train - 127.5) / 127.5 # 归一化到[-1, 1]
# 创建模型
generator = build_generator()
discriminator = build_discriminator()
# 编译判别器（单独训练时使用）
discriminator.compile(optimizer=tf.keras.optimizers.Adam(0.0002),
loss='binary_crossentropy',
metrics=['accuracy'])
# 创建和编译GAN
gan = GAN(generator=generator, discriminator=discriminator)
gan.compile(g_optimizer=tf.keras.optimizers.Adam(0.0002),
d_optimizer=tf.keras.optimizers.Adam(0.0002),
loss_fn=tf.keras.losses.BinaryCrossentropy())
# 训练
history = gan.fit(x_train, epochs=10, batch_size=64)
# 生成示例图像
generate_and_plot_images(generator, 10)
return generator, discriminator, history
def generate_and_plot_images(generator, num_images=10):
noise = tf.random.normal([num_images, 100])
generated_images = generator(noise, training=False)
plt.figure(figsize=(15, 3))
for i in range(num_images):
plt.subplot(1, num_images, i+1)
plt.imshow(generated_images[i, :, :, 0] * 127.5 + 127.5, cmap='gray')
plt.axis('off')
plt.show()
if __name__ == "__main__":
generator, discriminator, history = train_gan()代码解析：
生成器使用
Conv2DTranspose
判别器使用常规卷积层区分真假图像
对抗训练过程：固定一方训练另一方，交替进行
使用tanh激活函数将输出归一化到[-1,1]
模块五：前沿架构与完整项目实战
掌握基础架构后，可以学习更前沿的模型：
Transformer架构：基于自注意力机制，在NLP和CV领域都有突破
# 示例：使用Hugging Face Transformers库
from transformers import pipeline
# 快速使用预训练模型
classifier = pipeline('sentiment-analysis')
result = classifier("I love this movie!")
print(result)ResNet：通过残差连接解决深层网络梯度消失问题
# 使用预训练ResNet
from tensorflow.keras.applications import ResNet50
model = ResNet50(weights='imagenet')© 版权声明
