一：背景
博主使用zynq 7020 驱动st7701s lcd芯片，因项目需要，目前使用fb框架。博主采用内核6.1x以上版本
二：lcd显示需要的像素时钟计算
时钟 = htotal*vtotal*60帧
可以参考网上的资料详细学习一下同步信号的时序
一般需要配置：
.hdisplay = 480,
.hsync_start = 480+ 20,
.hsync_end = 480+ 10 + 20,
.htotal = 480+ 10 + 20+ 24,
.vdisplay = 800,
.vsync_start = 800 + 18 ,
.vsync_end = 800 + 18 + 4,
.vtotal = 800 + 18 + 4 + 24,三：st7701s 驱动芯片解析
ST7701S_SPEC_V1.1
3线spi模式

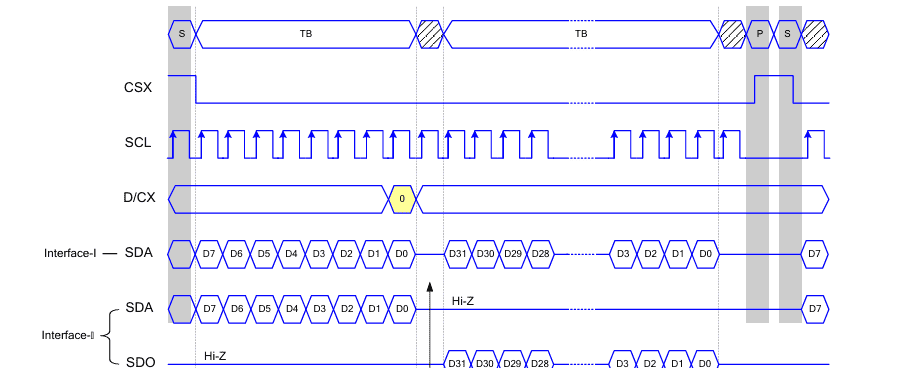

4线spi模式
两者的区别：spi 4线模式 + dc引脚控制，spi3线模式+9bit控制，第8bit为dc控制，dc主要是表明传输的是数据和还是cmd 。具体lcd 屏幕是几线控制模式，需要看lcd规格书确定。博主的是3线+9bit控制

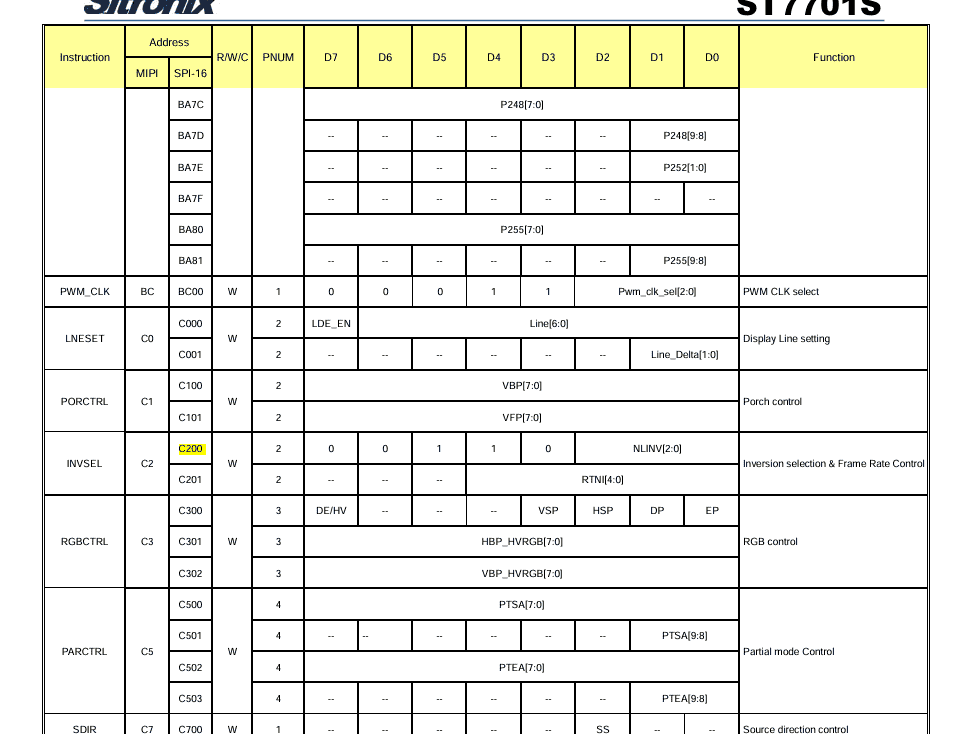

最主要地址控制部分：
四：st7701s 参考驱动
根据内核版本有driversgpudrmpanelpanel-sitronix-st7701.c 可以看到里面的源码时基于spi4线 模式+dc引脚控制的，或者是根据compatible配置不同可以mipi的驱动方式，跟博主使用的spi3线 + 9bit不一样，因此需要修改该驱动
#include <linux/module.h>
#include <linux/platform_device.h>
#include <drm/drm_panel.h>
#include <linux/fb.h>
#include <linux/fbcon.h>
#include <linux/clk.h>
#include <linux/dma/xilinx_dma.h>
#include <linux/of_dma.h>
#include <video/videomode.h>
#include <linux/delay.h>
#include <linux/of_gpio.h>
#include <video/of_videomode.h>
#include <linux/pwm.h>
#include "xlnx_bridge.h"
// #include "xilinx_vtc.h"
#include <drm/drm_mipi_dbi.h>
#include <drm/drm_mipi_dsi.h>
#include <drm/drm_modes.h>
#include <drm/drm_panel.h>
#include <linux/platform_device.h>
#include <linux/bitfield.h>
#include <linux/gpio/consumer.h>
#include <linux/delay.h>
#include <linux/module.h>
#include <linux/of.h>
#include <linux/regulator/consumer.h>
#include <linux/spi/spi.h>
#include <video/mipi_display.h>
/* Command2 BKx selection command */
#define ST7701_CMD2BKX_SEL 0xFF
#define ST7701_CMD1 0
#define ST7701_CMD2 BIT(4)
#define ST7701_CMD2BK_MASK GENMASK(3, 0)
/* Command2, BK0 commands */
#define ST7701_CMD2_BK0_PVGAMCTRL 0xB0 /* Positive Voltage Gamma Control */
#define ST7701_CMD2_BK0_NVGAMCTRL 0xB1 /* Negative Voltage Gamma Control */
#define ST7701_CMD2_BK0_LNESET 0xC0 /* Display Line setting */
#define ST7701_CMD2_BK0_PORCTRL 0xC1 /* Porch control */
#define _CMD2_BK0_INVSEL 0xC2 /* Inversion selection, Frame Rate Control */
#define ST7701_CMD2_BK0_INVSEL 0xC2
/* Command2, BK1 commands */
#define ST7701_CMD2_BK1_VRHS 0xB0 /* Vop amplitude setting */
#define ST7701_CMD2_BK1_VCOM 0xB1 /* VCOM amplitude setting */
#define ST7701_CMD2_BK1_VGHSS 0xB2 /* VGH Voltage setting */
#define ST7701_CMD2_BK1_TESTCMD 0xB3 /* TEST Command Setting */
#define ST7701_CMD2_BK1_VGLS 0xB5 /* VGL Voltage setting */
#define ST7701_CMD2_BK1_PWCTLR1 0xB7 /* Power Control 1 */
#define ST7701_CMD2_BK1_PWCTLR2 0xB8 /* Power Control 2 */
#define ST7701_CMD2_BK1_SPD1 0xC1 /* Source pre_drive timing set1 */
#define ST7701_CMD2_BK1_SPD2 0xC2 /* Source EQ2 Setting */
#define ST7701_CMD2_BK1_MIPISET1 0xD0 /* MIPI Setting 1 */
/* Command2, BK0 bytes */
#define ST7701_CMD2_BK0_GAMCTRL_AJ_MASK GENMASK(7, 6)
#define ST7701_CMD2_BK0_GAMCTRL_VC0_MASK GENMASK(3, 0)
#define ST7701_CMD2_BK0_GAMCTRL_VC4_MASK GENMASK(5, 0)
#define ST7701_CMD2_BK0_GAMCTRL_VC8_MASK GENMASK(5, 0)
#define ST7701_CMD2_BK0_GAMCTRL_VC16_MASK GENMASK(4, 0)
#define ST7701_CMD2_BK0_GAMCTRL_VC24_MASK GENMASK(4, 0)
#define ST7701_CMD2_BK0_GAMCTRL_VC52_MASK GENMASK(3, 0)
#define ST7701_CMD2_BK0_GAMCTRL_VC80_MASK GENMASK(5, 0)
#define ST7701_CMD2_BK0_GAMCTRL_VC108_MASK GENMASK(3, 0)
#define ST7701_CMD2_BK0_GAMCTRL_VC147_MASK GENMASK(3, 0)
#define ST7701_CMD2_BK0_GAMCTRL_VC175_MASK GENMASK(5, 0)
#define ST7701_CMD2_BK0_GAMCTRL_VC203_MASK GENMASK(3, 0)
#define ST7701_CMD2_BK0_GAMCTRL_VC231_MASK GENMASK(4, 0)
#define ST7701_CMD2_BK0_GAMCTRL_VC239_MASK GENMASK(4, 0)
#define ST7701_CMD2_BK0_GAMCTRL_VC247_MASK GENMASK(5, 0)
#define ST7701_CMD2_BK0_GAMCTRL_VC251_MASK GENMASK(5, 0)
#define ST7701_CMD2_BK0_GAMCTRL_VC255_MASK GENMASK(4, 0)
#define ST7701_CMD2_BK0_LNESET_LINE_MASK GENMASK(6, 0)
#define ST7701_CMD2_BK0_LNESET_LDE_EN BIT(7)
#define ST7701_CMD2_BK0_LNESET_LINEDELTA GENMASK(1, 0)
#define ST7701_CMD2_BK0_PORCTRL_VBP_MASK GENMASK(7, 0)
#define ST7701_CMD2_BK0_PORCTRL_VFP_MASK GENMASK(7, 0)
#define ST7701_CMD2_BK0_INVSEL_ONES_MASK GENMASK(5, 4)
#define ST7701_CMD2_BK0_INVSEL_NLINV_MASK GENMASK(2, 0)
#define ST7701_CMD2_BK0_INVSEL_RTNI_MASK GENMASK(4, 0)
/* Command2, BK1 bytes */
#define ST7701_CMD2_BK1_VRHA_MASK GENMASK(7, 0)
#define ST7701_CMD2_BK1_VCOM_MASK GENMASK(7, 0)
#define ST7701_CMD2_BK1_VGHSS_MASK GENMASK(3, 0)
#define ST7701_CMD2_BK1_TESTCMD_VAL BIT(7)
#define ST7701_CMD2_BK1_VGLS_ONES BIT(6)
#define ST7701_CMD2_BK1_VGLS_MASK GENMASK(3, 0)
#define ST7701_CMD2_BK1_PWRCTRL1_AP_MASK GENMASK(7, 6)
#define ST7701_CMD2_BK1_PWRCTRL1_APIS_MASK GENMASK(3, 2)
#define ST7701_CMD2_BK1_PWRCTRL1_APOS_MASK GENMASK(1, 0)
#define ST7701_CMD2_BK1_PWRCTRL2_AVDD_MASK GENMASK(5, 4)
#define ST7701_CMD2_BK1_PWRCTRL2_AVCL_MASK GENMASK(1, 0)
#define ST7701_CMD2_BK1_SPD1_ONES_MASK GENMASK(6, 4)
#define ST7701_CMD2_BK1_SPD1_T2D_MASK GENMASK(3, 0)
#define ST7701_CMD2_BK1_SPD2_ONES_MASK GENMASK(6, 4)
#define ST7701_CMD2_BK1_SPD2_T3D_MASK GENMASK(3, 0)
#define ST7701_CMD2_BK1_MIPISET1_ONES BIT(7)
#define ST7701_CMD2_BK1_MIPISET1_EOT_EN BIT(3)
#define CFIELD_PREP(_mask, _val)
(((typeof(_mask))(_val) << (__builtin_ffsll(_mask) - 1)) & (_mask))
enum op_bias {
OP_BIAS_OFF = 0,
OP_BIAS_MIN,
OP_BIAS_MIDDLE,
OP_BIAS_MAX
};
struct st7701;
struct st7701_panel_desc {
const struct drm_display_mode *mode;
unsigned int lanes;
enum mipi_dsi_pixel_format format;
unsigned int panel_sleep_delay;
/* TFT matrix driver configuration, panel specific. */
const u8 pv_gamma[16]; /* Positive voltage gamma control */
const u8 nv_gamma[16]; /* Negative voltage gamma control */
const u8 nlinv; /* Inversion selection */
const u32 vop_uv; /* Vop in uV */
const u32 vcom_uv; /* Vcom in uV */
const u16 vgh_mv; /* Vgh in mV */
const s16 vgl_mv; /* Vgl in mV */
const u16 avdd_mv; /* Avdd in mV */
const s16 avcl_mv; /* Avcl in mV */
const enum op_bias gamma_op_bias;
const enum op_bias input_op_bias;
const enum op_bias output_op_bias;
const u16 t2d_ns; /* T2D in ns */
const u16 t3d_ns; /* T3D in ns */
const bool eot_en;
/* GIP sequence, fully custom and undocumented. */
void (*gip_sequence)(struct st7701 *st7701);
};
struct st7701 {
struct spi_device *spi;
const struct st7701_panel_desc *desc;
//struct platform_device *pdev;
struct gpio_desc *sck;
struct gpio_desc *mosi;
struct gpio_desc *cs;
// 时序参数
unsigned int speed_hz;
struct gpio_desc *reset;
unsigned int sleep_delay;
enum drm_panel_orientation orientation;
int (*write_command)(struct st7701 *st7701, u8 cmd, const u8 *seq,
size_t len);
};
/* 自定义结构体用于描述我们的 LCD 设备 */
struct xilinx_vdmafb_dev {
struct fb_info *info; // FrameBuffer 设备信息
struct platform_device *pdev; // platform 平台设备
struct clk *pclk; // LCD 像素时钟
struct dma_chan *vdma; // VDMA 通道
struct dma_interleaved_template *dma_template;
struct xlnx_bridge *vtc_bridge; // VTC桥接器（Xilinx标准接口）
struct gpio_desc* bl_gpio; // LCD 背光引脚
};
static struct st7701 *g_st7701;
static inline struct st7701 *panel_to_st7701(struct xilinx_vdmafb_dev *fbdev)
{
return g_st7701;
}
#define ST7701_CMD(x) ((x) & 0x1ff) // 第9位为0表示命令
#define ST7701_DATA(x) ((x) | 0x100) // 第9位为1表示数据
// 延时函数（ns）
static void st7701_delay_ns(struct st7701 *ctx, unsigned int us_count)
{
//ns 延时，根据平台修改
}
// 发送9位数据（命令或数据）
static void st7701_spi_send_9bit(struct st7701 *ctx, u16 data)
{
int i;
for (i = 8; i >= 0; i--) {
gpiod_set_value(ctx->sck, 0);
if(data & (1<<i)){
gpiod_set_value(ctx->mosi, 1);
}
else{
gpiod_set_value(ctx->mosi, 0);
}
st7701_delay_ns(ctx, 33);
gpiod_set_value(ctx->sck, 1);
st7701_delay_ns(ctx, 33);
}
}
static void st7701_send_cmd(struct st7701 *ctx, u8 cmd)
{
st7701_delay_ns(ctx,110);
st7701_spi_send_9bit(ctx, ST7701_CMD(cmd));
}
static void st7701_send_data(struct st7701 *ctx, u8 data)
{
st7701_delay_ns(ctx,110);
st7701_spi_send_9bit(ctx, ST7701_DATA(data));
}
static int st7701_send_data_bulk(struct st7701 *st7701, u8 cmd, const u8 *seq,
size_t len)
{
st7701_send_cmd(st7701, cmd);
msleep(1);
for(int i=0;i<len;i++) {
msleep(1);
st7701_send_data(st7701, seq[i]);
}
return 0;
}
#define ST7701_WRITE(st7701, cmd, seq...)
{
const u8 d[] = { seq };
st7701_send_data_bulk(st7701, cmd, d, ARRAY_SIZE(d));
}
static u8 st7701_vgls_map(struct st7701 *st7701)
{
const struct st7701_panel_desc *desc = st7701->desc;
struct {
s32 vgl;
u8 val;
} map[16] = {
{ -7060, 0x0 }, { -7470, 0x1 },
{ -7910, 0x2 }, { -8140, 0x3 },
{ -8650, 0x4 }, { -8920, 0x5 },
{ -9210, 0x6 }, { -9510, 0x7 },
{ -9830, 0x8 }, { -10170, 0x9 },
{ -10530, 0xa }, { -10910, 0xb },
{ -11310, 0xc }, { -11730, 0xd },
{ -12200, 0xe }, { -12690, 0xf }
};
int i;
for (i = 0; i < ARRAY_SIZE(map); i++)
if (desc->vgl_mv == map[i].vgl)
return map[i].val;
return 0;
}
static void st7701_switch_cmd_bkx(struct st7701 *st7701, bool cmd2, u8 bkx)
{
u8 val;
if (cmd2)
val = ST7701_CMD2 | FIELD_PREP(ST7701_CMD2BK_MASK, bkx);
else
val = ST7701_CMD1;
ST7701_WRITE(st7701, ST7701_CMD2BKX_SEL, 0x77, 0x01, 0x00, 0x00, val);
}
static void st7701_init_sequence(struct st7701 *st7701)
{
const struct st7701_panel_desc *desc = st7701->desc;
const struct drm_display_mode *mode = desc->mode;
const u8 linecount8 = mode->vdisplay / 8;
const u8 linecountrem2 = (mode->vdisplay % 8) / 2;
ST7701_WRITE(st7701, MIPI_DCS_SOFT_RESET, 0x00);
/* We need to wait 5ms before sending new commands */
msleep(5);
ST7701_WRITE(st7701, MIPI_DCS_EXIT_SLEEP_MODE, 0x00);
msleep(st7701->sleep_delay);
ST7701_WRITE(st7701, MIPI_DCS_EXIT_SLEEP_MODE, 0x00);
msleep(st7701->sleep_delay);
/* Command2, BK0 */
st7701_switch_cmd_bkx(st7701, true, 0);
st7701->write_command(st7701, ST7701_CMD2_BK0_PVGAMCTRL, desc->pv_gamma,
ARRAY_SIZE(desc->pv_gamma));
st7701->write_command(st7701, ST7701_CMD2_BK0_NVGAMCTRL, desc->nv_gamma,
ARRAY_SIZE(desc->nv_gamma));
ST7701_WRITE(st7701, ST7701_CMD2_BK0_LNESET,
FIELD_PREP(ST7701_CMD2_BK0_LNESET_LINE_MASK, linecount8 - 1) |
(linecountrem2 ? ST7701_CMD2_BK0_LNESET_LDE_EN : 0),
FIELD_PREP(ST7701_CMD2_BK0_LNESET_LINEDELTA, linecountrem2));
ST7701_WRITE(st7701, ST7701_CMD2_BK0_PORCTRL,
FIELD_PREP(ST7701_CMD2_BK0_PORCTRL_VBP_MASK,
mode->vtotal - mode->vsync_end),
FIELD_PREP(ST7701_CMD2_BK0_PORCTRL_VFP_MASK,
mode->vsync_start - mode->vdisplay));
/*
* Horizontal pixel count configuration:
* PCLK = 512 + (RTNI[4:0] * 16)
* The PCLK is number of pixel clock per line, which matches
* mode htotal. The minimum is 512 PCLK.
*/
ST7701_WRITE(st7701, ST7701_CMD2_BK0_INVSEL,
ST7701_CMD2_BK0_INVSEL_ONES_MASK |
FIELD_PREP(ST7701_CMD2_BK0_INVSEL_NLINV_MASK, desc->nlinv),
FIELD_PREP(ST7701_CMD2_BK0_INVSEL_RTNI_MASK,
(clamp((u32)mode->htotal, 512U, 1008U) - 512) / 16));
/* Command2, BK1 */ //B0开始地方
st7701_switch_cmd_bkx(st7701, true, 1);
/* Vop = 3.5375V + (VRHA[7:0] * 0.0125V) */ //B0
ST7701_WRITE(st7701, ST7701_CMD2_BK1_VRHS,
FIELD_PREP(ST7701_CMD2_BK1_VRHA_MASK,
DIV_ROUND_CLOSEST(desc->vop_uv - 3537500, 12500)));
/* Vcom = 0.1V + (VCOM[7:0] * 0.0125V) */
ST7701_WRITE(st7701, ST7701_CMD2_BK1_VCOM,
FIELD_PREP(ST7701_CMD2_BK1_VCOM_MASK,
DIV_ROUND_CLOSEST(desc->vcom_uv - 100000, 12500)));
/* Vgh = 11.5V + (VGHSS[7:0] * 0.5V) */
ST7701_WRITE(st7701, ST7701_CMD2_BK1_VGHSS,
FIELD_PREP(ST7701_CMD2_BK1_VGHSS_MASK,
DIV_ROUND_CLOSEST(clamp(desc->vgh_mv,
(u16)11500,
(u16)17000) - 11500,
500)));
ST7701_WRITE(st7701, ST7701_CMD2_BK1_TESTCMD, ST7701_CMD2_BK1_TESTCMD_VAL);
/* Vgl is non-linear */
ST7701_WRITE(st7701, ST7701_CMD2_BK1_VGLS,
ST7701_CMD2_BK1_VGLS_ONES |
FIELD_PREP(ST7701_CMD2_BK1_VGLS_MASK, st7701_vgls_map(st7701)));
//B7
ST7701_WRITE(st7701, ST7701_CMD2_BK1_PWCTLR1,
FIELD_PREP(ST7701_CMD2_BK1_PWRCTRL1_AP_MASK,
desc->gamma_op_bias) |
FIELD_PREP(ST7701_CMD2_BK1_PWRCTRL1_APIS_MASK,
desc->input_op_bias) |
FIELD_PREP(ST7701_CMD2_BK1_PWRCTRL1_APOS_MASK,
desc->output_op_bias));
/* Avdd = 6.2V + (AVDD[1:0] * 0.2V) , Avcl = -4.4V - (AVCL[1:0] * 0.2V) */
ST7701_WRITE(st7701, ST7701_CMD2_BK1_PWCTLR2,
FIELD_PREP(ST7701_CMD2_BK1_PWRCTRL2_AVDD_MASK,
DIV_ROUND_CLOSEST(desc->avdd_mv - 6200, 200)) |
FIELD_PREP(ST7701_CMD2_BK1_PWRCTRL2_AVCL_MASK,
DIV_ROUND_CLOSEST(-4400 - desc->avcl_mv, 200)));
/* T2D = 0.2us * T2D[3:0] */
ST7701_WRITE(st7701, ST7701_CMD2_BK1_SPD1,
ST7701_CMD2_BK1_SPD1_ONES_MASK |
FIELD_PREP(ST7701_CMD2_BK1_SPD1_T2D_MASK,
DIV_ROUND_CLOSEST(desc->t2d_ns, 200)));
/* T3D = 4us + (0.8us * T3D[3:0]) */
ST7701_WRITE(st7701, ST7701_CMD2_BK1_SPD2,
ST7701_CMD2_BK1_SPD2_ONES_MASK |
FIELD_PREP(ST7701_CMD2_BK1_SPD2_T3D_MASK,
DIV_ROUND_CLOSEST(desc->t3d_ns - 4000, 800)));
ST7701_WRITE(st7701, ST7701_CMD2_BK1_MIPISET1,
ST7701_CMD2_BK1_MIPISET1_ONES |
(desc->eot_en ? ST7701_CMD2_BK1_MIPISET1_EOT_EN : 0));
}
static void st7701s_gip_sequence(struct st7701 *st7701)
{
st7701_switch_cmd_bkx(st7701, true, 3);
ST7701_WRITE(st7701, 0xEF, 0x08);
//此部分根据产商提供测demo st7701s寄存器设置修改。可以直接参考内核的驱动文件
//。。。。。
}
static int st7701_prepare(struct xilinx_vdmafb_dev *fbdev)
{
struct st7701 *st7701 = panel_to_st7701(fbdev);
int ret;
gpiod_set_value(st7701->reset, 0);
msleep(200);
gpiod_set_value(st7701->reset, 1);
msleep(150);
gpiod_set_value(st7701->cs, 0);
st7701_init_sequence(st7701);
gpiod_set_value(st7701->cs, 0);
if (st7701->desc->gip_sequence)
st7701->desc->gip_sequence(st7701);
/* Disable Command2 */
st7701_switch_cmd_bkx(st7701, false, 0);
return 0;
}
static int st7701_enable(struct xilinx_vdmafb_dev *fbdev)
{
struct st7701 *st7701 = panel_to_st7701(fbdev);
ST7701_WRITE(st7701, MIPI_DCS_SET_DISPLAY_ON, 0x00);
return 0;
}
static int st7701_disable(struct xilinx_vdmafb_dev *fbdev)
{
struct st7701 *st7701 = panel_to_st7701(fbdev);
ST7701_WRITE(st7701, MIPI_DCS_SET_DISPLAY_OFF, 0x00);
return 0;
}
static int st7701_unprepare(struct xilinx_vdmafb_dev *fbdev)
{
struct st7701 *st7701 = panel_to_st7701(fbdev);
ST7701_WRITE(st7701, MIPI_DCS_ENTER_SLEEP_MODE, 0x00);
msleep(st7701->sleep_delay);
gpiod_set_value(st7701->reset, 0);
gpiod_set_value(st7701->cs, 1);
/**
* During the Resetting period, the display will be blanked
* (The display is entering blanking sequence, which maximum
* time is 120 ms, when Reset Starts in Sleep Out –mode. The
* display remains the blank state in Sleep In –mode.) and
* then return to Default condition for Hardware Reset.
*
* So we need wait sleep_delay time to make sure reset completed.
*/
msleep(st7701->sleep_delay);
return 0;
}
static const struct drm_display_mode rgb565_mode = {
.clock = 24000,// = htotal*vtotal*60
.hdisplay = 480,
.hsync_start = 480+ 20,
.hsync_end = 480+ 10 + 20,
.htotal = 480+ 10 + 20+ 24,
.vdisplay = 800,
.vsync_start = 800 + 18,
.vsync_end = 800 + 18+ 4,
.vtotal = 800 + 18+ 4 + 24,
.width_mm = 50, //物理板卡宽高
.height_mm = 81,
.flags = DRM_MODE_FLAG_NHSYNC | DRM_MODE_FLAG_NVSYNC,
.type = FB_TYPE_PACKED_PIXELS,
};
static const struct st7701_panel_desc rgb565_desc = {
.mode = &rgb565_mode,
.panel_sleep_delay = 80,
.pv_gamma = {
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_AJ_MASK, 0) |
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC0_MASK, 0x6),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_AJ_MASK, 0) |
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC4_MASK, 0x10),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_AJ_MASK, 0) |
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC8_MASK, 0x16),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC16_MASK, 0xd),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_AJ_MASK, 0) |
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC24_MASK, 0x11),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC52_MASK, 0x6),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC80_MASK, 0x8),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC108_MASK, 0x7),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC147_MASK, 0x8),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC175_MASK, 0x22),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC203_MASK, 0x4),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_AJ_MASK, 0) |
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC231_MASK, 0x14),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC239_MASK, 0xf),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_AJ_MASK, 0) |
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC247_MASK, 0x29),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_AJ_MASK, 0) |
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC251_MASK, 0x2f),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_AJ_MASK, 0) |
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC255_MASK, 0x1f)
},
.nv_gamma = {
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_AJ_MASK, 0) |
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC0_MASK, 0xf),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_AJ_MASK, 0) |
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC4_MASK, 0x18),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_AJ_MASK, 0) |
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC8_MASK, 0x1e),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC16_MASK, 0xc),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_AJ_MASK, 0) |
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC24_MASK, 0xf),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC52_MASK, 0x6),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC80_MASK, 0x8),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC108_MASK, 0xa),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC147_MASK, 0x9),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC175_MASK, 0x24),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC203_MASK, 0x5),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_AJ_MASK, 0) |
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC231_MASK, 0x10),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC239_MASK, 0x11),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_AJ_MASK, 0) |
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC247_MASK, 0x2A),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_AJ_MASK, 0) |
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC251_MASK, 0x34),
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_AJ_MASK, 0) |
CFIELD_PREP(ST7701_CMD2_BK0_GAMCTRL_VC255_MASK, 0x1f)
},
.nlinv = 8,
.vop_uv = 4500000,
.vcom_uv = 875000,
.vgh_mv = 12900,
.vgl_mv = -10000,
.avdd_mv = 6600,
.avcl_mv = -4400,
.gamma_op_bias = OP_BIAS_MIDDLE,
.input_op_bias = OP_BIAS_MIN,
.output_op_bias = OP_BIAS_MIN,
.t2d_ns = 1600,
.t3d_ns = 10400,
.eot_en = true,
.gip_sequence = st7701s_gip_sequence,
};
static int st7701_probe(struct xilinx_vdmafb_dev *fbdev, int connector_type)
{
struct device * dev = &fbdev->pdev->dev;
const struct st7701_panel_desc *desc = &rgb565_desc;
struct st7701 *st7701;
int ret;
st7701 = devm_kzalloc(dev, sizeof(struct st7701), GFP_KERNEL);
if (!st7701)
return -ENOMEM;
dev_info(dev, "st7701_probe devm_kzalloc drm_panel_add
");
st7701->reset = devm_gpiod_get(dev, "reset", GPIOD_OUT_LOW);
if (IS_ERR(st7701->reset)) {
dev_err(dev, "Couldn't get reset GPIO
");
return PTR_ERR(st7701->reset);
}
st7701->sck = devm_gpiod_get(dev, "sck", GPIOD_OUT_LOW);
if (IS_ERR(st7701->sck)){
return PTR_ERR(st7701->sck);
}
st7701->mosi = devm_gpiod_get(dev, "mosi", GPIOD_OUT_LOW);
if (IS_ERR(st7701->mosi))
{
return PTR_ERR(st7701->mosi);
}
st7701->cs = devm_gpiod_get(dev, "cs", GPIOD_OUT_HIGH);
if (IS_ERR(st7701->cs)){
return PTR_ERR(st7701->cs);
}
// 获取SPI频率
ret = device_property_read_u32(dev, "spi-max-frequency", &st7701->speed_hz);
if (ret)
st7701->speed_hz = 10000000;
st7701->sleep_delay = 120 + desc->panel_sleep_delay;
st7701->desc = desc;
g_st7701 = st7701;
return ret;
}
static int st7701_spi_probe(struct xilinx_vdmafb_dev *vdev)
{
struct gpio_desc *dc;
int err;
err = st7701_probe(vdev, DRM_MODE_CONNECTOR_DPI);
if (err)
return err;
g_st7701->write_command = st7701_send_data_bulk;
return 0;
}五：fb驱动和设备树
上述修改的是st7701s的驱动，通常来说就是panel的驱动，针对fb要使用到这个pannel ,需要添加fb驱动代码，参考正点原子的vdma教程，并修改为内核6.1x版本，最主要的修改就是vtc时序和fb ops操作
static int vdmafb_setcolreg(unsigned regno, unsigned red,unsigned green, unsigned blue,
unsigned transp, struct fb_info *fb_info)
{
u32 tmp;
if (regno >= 16)
return 1;
u8 r5 = red >> 3;
u8 g6 = green >> 2;
u8 b5 = blue >> 3;
tmp = (r5 << 11) | (g6 << 5) | b5;
((u32*)(fb_info->pseudo_palette))[regno] = tmp;
return 0;
}
static int vdmafb_check_var(struct fb_var_screeninfo *var,
struct fb_info *fb_info)
{
struct fb_var_screeninfo *fb_var = &fb_info->var;
memcpy(var, fb_var, sizeof(struct fb_var_screeninfo));
return 0;
}
static int vdmafb_blank(int blank_mode,struct fb_info *fb_info)
{
return 0;
}
/* Frame Buffer 操作函数集 */
static struct fb_ops vdmafb_ops = {
.owner = THIS_MODULE,
.fb_setcolreg = vdmafb_setcolreg,
.fb_check_var = vdmafb_check_var,
.fb_blank = vdmafb_blank,
//下面三个接口需要添加内核宏定义，配置可以看后面部分
.fb_fillrect = cfb_fillrect,
.fb_copyarea = cfb_copyarea,
.fb_imageblit = cfb_imageblit,
.fb_mmap = fb_io_mmap, //一定需要加 ,不然应用程序在mmap会报错，没办法映射内存操作
};
static int vdmafb_init_fbinfo_dt(struct xilinx_vdmafb_dev *fbdev,
struct videomode *vmode)
{
struct device *dev = &fbdev->pdev->dev;
int display_timing = 0;
int ret;
ret = of_get_videomode(dev->of_node, vmode, display_timing);
if (ret < 0) {
dev_err(dev, "Failed to get videomode from DT
");
return ret;
}
return 0;
}
static int vdmafb_init_fbinfo(struct xilinx_vdmafb_dev *fbdev,
struct videomode *vmode)
{
struct device *dev = &fbdev->pdev->dev;
struct fb_info *fb_info = fbdev->info;
struct fb_videomode mode = {0};
dma_addr_t fb_phys; // 显存物理地址
void *fb_virt; // 显存虚拟地址
unsigned fb_size; // 显存大小
int ret;
/* 解析设备树获取 LCD 时序参数 */
ret = vdmafb_init_fbinfo_dt(fbdev, vmode);
if (ret < 0)
return ret;
/* 申请 LCD 显存 强制页对齐 */
fb_size = vmode->hactive * vmode->vactive * 2;
unsigned long alloc_size = PAGE_ALIGN(fb_size);
fb_virt = dma_alloc_wc(dev, alloc_size, &fb_phys, GFP_KERNEL | GFP_USER);
if (!fb_virt) {
dev_err(dev, "dma_alloc_wc failed (size=%lu)
", alloc_size);
return -ENOMEM;
}
memset(fb_virt, 0, fb_size); // 显存清零
/* 初始化 fb_info */
fb_info->fbops = &vdmafb_ops;
fb_info->flags = 0; //注意这里设置为0即可
fb_info->screen_base = fb_virt;
fb_info->screen_size = fb_size;
strcpy(fb_info->fix.id, "xlnx");
fb_info->fix.type = FB_TYPE_PACKED_PIXELS;
fb_info->fix.visual = FB_VISUAL_TRUECOLOR,
fb_info->fix.accel = FB_ACCEL_NONE;
fb_info->fix.line_length = vmode->hactive * 2;
fb_info->fix.smem_start = fb_phys;
fb_info->fix.smem_len = fb_size;
fb_info->var.grayscale = 0; // 彩色
fb_info->var.nonstd = 0; // 标准像素格式
fb_info->var.activate = FB_ACTIVATE_NOW;
fb_info->var.accel_flags = FB_ACCEL_NONE;
fb_info->var.bits_per_pixel = 16; // 像素深度（bit 位）
fb_info->var.xres = fb_info->var.xres_virtual = vmode->hactive;
fb_info->var.yres = fb_info->var.yres_virtual = vmode->vactive;
fb_info->var.xoffset = fb_info->var.yoffset = 0;
fb_info->var.red.offset = 11;
fb_info->var.red.length = 5;
fb_info->var.green.offset = 5;
fb_info->var.green.length = 6;
fb_info->var.blue.offset = 0;
fb_info->var.blue.length = 5;
fb_info->var.transp.offset = 0;
fb_info->var.transp.length = 0;
fb_videomode_from_videomode(vmode, &mode);
fb_videomode_to_var(&fb_info->var, &mode);
return 0;
}
static int vdmafb_init_vdma(struct xilinx_vdmafb_dev *fbdev)
{
struct device *dev = &fbdev->pdev->dev;
struct fb_info *info = fbdev->info;
struct dma_interleaved_template *dma_template = fbdev->dma_template;
struct dma_async_tx_descriptor *tx_desc;
struct xilinx_vdma_config vdma_config = {0};
size_t sig_size;
/* 申请 VDMA 通道 */
fbdev->vdma = of_dma_request_slave_channel(dev->of_node, "vdma0");
if (IS_ERR(fbdev->vdma)) {
dev_err(dev, "Failed to request vdma channel
");
return PTR_ERR(fbdev->vdma);
}
dev_err(dev, "Panel prepare vdma channel:
");
/* 终止 VDMA 通道数据传输 */
dmaengine_terminate_all(fbdev->vdma);
/* 初始化 VDMA 通道 */
dma_template->dir = DMA_MEM_TO_DEV;
dma_template->numf = info->var.yres;
dma_template->sgl[0].size = info->fix.line_length;
dma_template->frame_size = 1;
dma_template->sgl[0].icg = 0;
dma_template->src_start = info->fix.smem_start;
dma_template->src_sgl = 1;
dma_template->src_inc = 1;
dma_template->dst_inc = 0;
dma_template->dst_sgl = 0;
tx_desc = dmaengine_prep_interleaved_dma(fbdev->vdma, dma_template,
DMA_CTRL_ACK | DMA_PREP_INTERRUPT);
if (!tx_desc) {
dev_err(dev, "Failed to prepare DMA descriptor
");
dma_release_channel(fbdev->vdma);
return -1;
}
vdma_config.park = 1;
xilinx_vdma_channel_set_config(fbdev->vdma, &vdma_config);
/* 启动 VDMA 通道数据传输 */
dmaengine_submit(tx_desc);
dma_async_issue_pending(fbdev->vdma);
return 0;
}
/* --------------------------- VTC控制函数（基于xlnx_bridge） --------------------------- */
static int xilinx_vtc_init(struct xilinx_vdmafb_dev *dpi)
{
struct device_node *vtc_node;
struct device *dev = &dpi->pdev->dev;
int ret = 0;
// 1. 从设备树获取VTC节点（xlnx,bridge属性）
vtc_node = of_parse_phandle(dev->of_node, "xlnx,bridge", 0);
if (!vtc_node) {
dev_err(dev, "VTC node not found in DT
");
return -ENODEV;
}
// 2. 获取VTC桥接器实例（支持probe defer）
dpi->vtc_bridge = of_xlnx_bridge_get(vtc_node);
of_node_put(vtc_node);
if (IS_ERR(dpi->vtc_bridge)) {
ret = PTR_ERR(dpi->vtc_bridge);
if (ret != -EPROBE_DEFER)
dev_err(dev, "VTC bridge get failed: %d
", ret);
return ret;
}
dev_info(dev, "VTC bridge init success
");
return 0;
}
static int vdmafb_init_vtc(struct xilinx_vdmafb_dev *fbdev,
struct videomode *vmode)
{
struct device_node *node;
struct device *dev = &fbdev->pdev->dev;
int ret;
// 3. 初始化VTC桥接器
ret = xilinx_vtc_init(fbdev); //提前获取用户配置的vtc
if (ret) {
if (ret != -EPROBE_DEFER)
dev_err(dev, "VTC init failed: %d
", ret);
return ret;
}
xlnx_bridge_disable(fbdev->vtc_bridge);
// 1. 配置VTC时序（Xilinx标准接口）
xlnx_bridge_set_timing(fbdev->vtc_bridge, vmode);
// 2. 启用VTC
xlnx_bridge_enable(fbdev->vtc_bridge);
dev_info(dev, "VTC timing set:clk=%dMHz
",vmode->pixelclock / 1000000);
return 0;
}
static int vdmafb_probe(struct platform_device *pdev)
{
struct xilinx_vdmafb_dev *fbdev;
struct fb_info *info;
struct videomode vmode;
struct pwm_device *pwm;
int ret;
dev_err(&pdev->dev, "init to allocate memory
");
/* 实例化一个 fb_info 结构体对象 */
info = framebuffer_alloc(sizeof(struct xilinx_vdmafb_dev), &pdev->dev);
if (!info) {
dev_err(&pdev->dev, "Failed to allocate memory
");
return -ENOMEM;
}
fbdev = info->par;
fbdev->info = info;
fbdev->pdev = pdev;
/* 获取 LCD 所需的像素时钟 */
fbdev->pclk = devm_clk_get(&pdev->dev, "lcd_pclk");
if (IS_ERR(fbdev->pclk)) {
dev_err(&pdev->dev, "Failed to get pixel clock
");
ret = PTR_ERR(fbdev->pclk);
goto label1;
}
clk_disable_unprepare(fbdev->pclk); // 先禁止时钟输出
/* 初始化 info 变量 */
ret = vdmafb_init_fbinfo(fbdev, &vmode);
if (ret)
goto label1;
ret = fb_alloc_cmap(&info->cmap, 256, 0);
if (ret < 0) {
dev_err(&pdev->dev, "Failed to allocate color map
");
goto label2;
}
fbdev->dma_template = devm_kzalloc(&pdev->dev,
sizeof(struct dma_interleaved_template) +
sizeof(struct data_chunk),
GFP_KERNEL);
if (!fbdev->dma_template)
return -ENOMEM;
info->pseudo_palette = devm_kzalloc(&pdev->dev, sizeof(u32) * 16, GFP_KERNEL);
if (!info->pseudo_palette) {
ret = -ENOMEM;
goto label3;
}
/* 设置 LCD 像素时钟、使能时钟 */
info->var.pixclock =24000000ULL / ((u32)vmode.pixelclock/10000);
clk_set_rate(fbdev->pclk, vmode.pixelclock);
clk_prepare_enable(fbdev->pclk);
msleep(5);
/* 初始化 LCD 时序控制器 vtc */
ret = vdmafb_init_vtc(fbdev, &vmode);
if (ret)
goto label4;
st7701_spi_probe(fbdev);
ret = st7701_prepare(fbdev);
if (ret) {
dev_err(&pdev->dev, "Panel prepare failed: %d
", ret);
}
st7701_enable(fbdev);
/* 初始化 LCD VDMA */
ret = vdmafb_init_vdma(fbdev);
if (ret)
goto label6;
/* 注册 FrameBuffer 设备 */
ret = register_framebuffer(info);
if (ret < 0) {
dev_err(&pdev->dev,"Failed to register framebuffer device
");
goto label6;
}
platform_set_drvdata(pdev, fbdev);
return 0;
label6:
dmaengine_terminate_all(fbdev->vdma); // 终止 VDMA 通道所有数据传输
dma_release_channel(fbdev->vdma); // 释放 VDMA 通道
label5:
xlnx_bridge_disable(fbdev->vtc_bridge); // 禁止 vtc 时序控制器
label4:
clk_disable_unprepare(fbdev->pclk); // 禁止时钟输出
label3:
fb_dealloc_cmap(&info->cmap);
label2:
dma_free_wc(&pdev->dev, info->screen_size,
info->screen_base, info->fix.smem_start);
label1:
framebuffer_release(info);
return ret;
}
static void vdmafb_remove(struct platform_device *pdev)
{
struct xilinx_vdmafb_dev *fbdev = platform_get_drvdata(pdev);
struct fb_info *info = fbdev->info;
unregister_framebuffer(info);
dmaengine_terminate_all(fbdev->vdma);
dma_release_channel(fbdev->vdma);
xlnx_bridge_disable(fbdev->vtc_bridge);
clk_disable_unprepare(fbdev->pclk);
fb_dealloc_cmap(&info->cmap);
dma_free_wc(&pdev->dev, info->screen_size,info->screen_base, info->fix.smem_start);
framebuffer_release(info);
}
static void vdmafb_shutdown(struct platform_device *pdev)
{
struct xilinx_vdmafb_dev *fbdev = platform_get_drvdata(pdev);
xlnx_bridge_disable(fbdev->vtc_bridge);
clk_disable_unprepare(fbdev->pclk);
}
static const struct of_device_id vdmafb_of_match_table[] = {
{ .compatible = "st7701s,lcd", },
{ /* end of table */ },
};
MODULE_DEVICE_TABLE(of, vdmafb_of_match_table);
static struct platform_driver xilinx_vdmafb_driver = {
.probe = vdmafb_probe,
.remove = vdmafb_remove,
.shutdown = vdmafb_shutdown,
.driver = {
.name = "st7701s,lcd",
.of_match_table = vdmafb_of_match_table,
},
};
module_platform_driver(xilinx_vdmafb_driver);
MODULE_DESCRIPTION("Framebuffer driver based on Xilinx VDMA IP Core.");
MODULE_AUTHOR("dttt.nt");
MODULE_LICENSE("GPL v2");将以上两部分代码放置到同一个文件，并放置到/drivers/gpu/drm/xlnx/，并修改该路径makefile:
$a obj-y += st7701s_dma_lcd.o编译即可
六：设备树配置和内核宏定义
&clk_wiz_0 {
compatible = "xlnx,clocking-wizard";
xlnx,nr-outputs = <2>;
};
//内核运行的时候，会优先注册号vtc等驱动。fb驱动只需要读取并配置vtc brid时序即可
&v_tc_0 {
compatible = "xlnx,bridge-v-tc-6.1";
xlnx,pixels-per-clock = <1>;
};
&amba_pl {
xlnx_vdmafb_lcd: mys_7701@0 {
status = "okay";
compatible = "st7701s,lcd";
xlnx,bridge = <&v_tc_0>; // 绑定VTC时序控制器
clocks = <&clk_wiz_0 0>;
clock-names = "lcd_pclk";
dmas = <&axi_vdma_0 0>; // 绑定VDMA通道0
dma-names = "vdma0";
backlight-gpios = <&gpio0 57 1>;
sck-gpios = <&gpio0 61 GPIO_ACTIVE_HIGH>;
mosi-gpios = <&gpio0 60 GPIO_ACTIVE_HIGH>;
cs-gpios = <&gpio0 59 GPIO_ACTIVE_HIGH>;
reset-gpios = <&gpio0 58 GPIO_ACTIVE_HIGH>;
spi-max-frequency = <33000000>;
/* 参考正点原子写法 */
display-timings {
native-mode = <&st7701_timing>;
st7701_timing: timing0 {
clock-frequency = <24000000>;
hactive = <480>;
vactive = <800>;
hfront-porch = <20>;
hsync-len = <10>;
hback-porch = <24>;
vfront-porch = <18>;
vsync-len = <4>;
vback-porch = <24>;
hsync-active = <0>;
vsync-active = <0>;
de-active = <1>;
pixelclk-active = <0>;
};
};
};
};因为博主在测试内核开宏定义的时候，开启相关宏，内核编译依旧报找不到cfb_fillrect等三个接口
因此把下面宏全部开启就可以解决了。当然有些宏肯定可以不开的，这里就不深究了
CONFIG_HAS_IOMEM=y
CONFIG_VIDEO=y
CONFIG_FB=y
CONFIG_FB_OPENCORES=y
CONFIG_FB_CORE=y
CONFIG_FB_NOTIFY=y
CONFIG_FB_DEVICE=y
CONFIG_FB_CFB_FILLRECT=y
CONFIG_FB_CFB_COPYAREA=y
CONFIG_FB_CFB_IMAGEBLIT=y
CONFIG_FB_SYS_FILLRECT=y
CONFIG_FB_SYS_COPYAREA=y
CONFIG_FB_SYS_IMAGEBLIT=y
CONFIG_FB_SYSMEM_FOPS=y
CONFIG_FB_DEFERRED_IO=y
CONFIG_FB_DMAMEM_HELPERS=y
CONFIG_FB_DMAMEM_HELPERS_DEFERRED=y
CONFIG_FB_IOMEM_FOPS=y
CONFIG_FB_IOMEM_HELPERS=y
CONFIG_FB_SYSMEM_HELPERS=y
CONFIG_FB_SYSMEM_HELPERS_DEFERRED=y
CONFIG_FB_MODE_HELPERS=y
CONFIG_FB_TILEBLITTING=y
CONFIG_VIDEOMODE_HELPERS=y
#
# Console display driver support
#
CONFIG_VGA_CONSOLE=y
CONFIG_DUMMY_CONSOLE=y
CONFIG_DUMMY_CONSOLE_COLUMNS=80
CONFIG_DUMMY_CONSOLE_ROWS=30
CONFIG_FRAMEBUFFER_CONSOLE=y
CONFIG_FRAMEBUFFER_CONSOLE_LEGACY_ACCELERATION=y
CONFIG_FRAMEBUFFER_CONSOLE_DETECT_PRIMARY=y
CONFIG_CMA_ALLOW_ZONE_MOVEMENT=y
CONFIG_FB_CMA=y
CONFIG_FB_MMAP=y
#CONFIG_DRM=y
CONFIG_DRM_KMS_HELPER=y
CONFIG_DRM_ATOMIC_HELPER=y
CONFIG_DRM_GEM_CMA_HELPER=y
CONFIG_DRM_FBDEV_EMULATION=y
CONFIG_COMMON_CLK_XLNX_CLKWZRD=y
CONFIG_DRM_XLNX=y
CONFIG_DRM_XLNX_BRIDGE_VTC=y
CONFIG_DRM_XLNX_VTC=y
CONFIG_DRM_XLNX_AXI_VDMA=y
CONFIG_DRM_XLNX_PANEL=y
CONFIG_DRM_XLNX_BRIDGE=y
CONFIG_BACKLIGHT_CLASS_DEVICE=y
CONFIG_DRM_ATOMIC=y
CONFIG_CLK_WIZARD=y© 版权声明
文章版权归作者所有，未经允许请勿转载。
相关文章
暂无评论...
